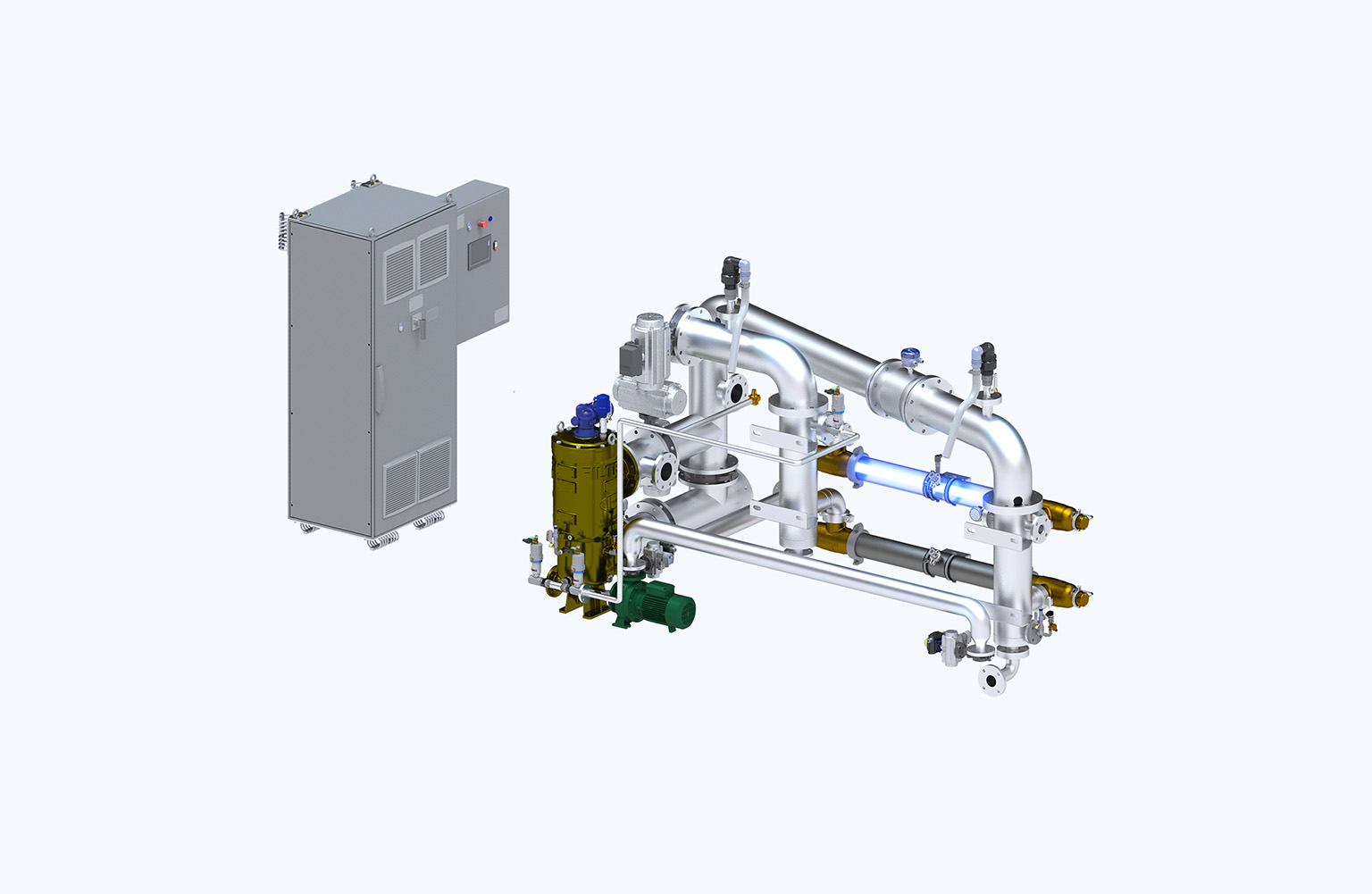

BIO-SEA ‘B’ – Modular solution

The most cost-effective UV BWTS on the market

Benefits of BIO-SEA ‘B’

  • Compatible with ballast water flow rates between 50 and 2000m³/h

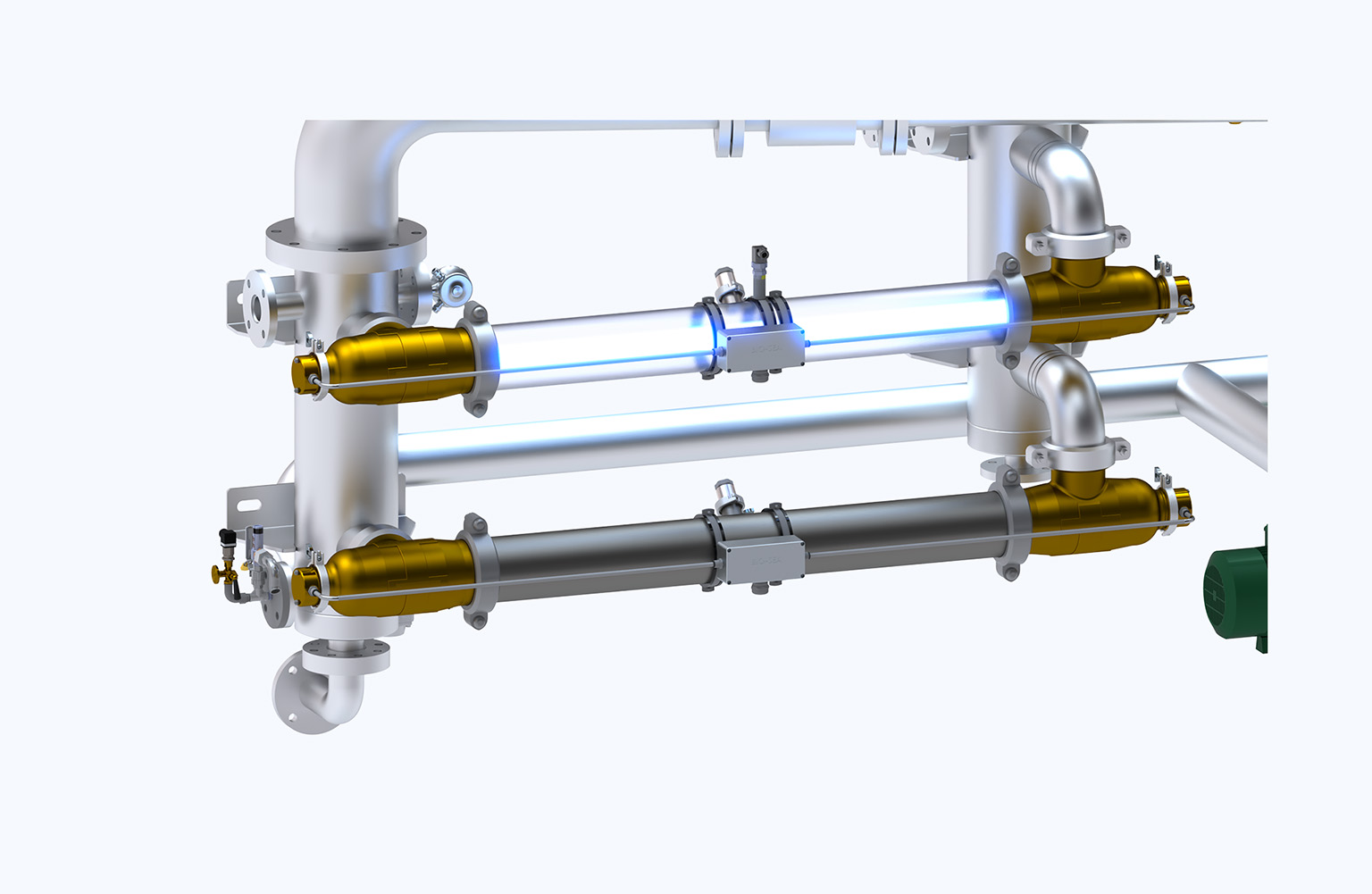

  • Titanium reactor designed with a single polychromatic, medium pressure, high-intensity UV lamp for optimum cost-efficiency and performance
  • UV dosage automatically controlled according to water quality/turbidity
  • Safe: no chemicals, no by-products, no active substances
  • System performance unaffected by variations in water temperature or salinity
  • Stand-alone operation, user-friendly interface
  • Compact unit with minimal mounting height
  • Easy to install, use and maintain
  • Cost-effective, low OPEX
  • Proven performance in low UV water transmission conditions
  • High grade quality materials and components

Specifications

Treatment Capacityfrom 50 to 2000m3/h
Power Supply400-440 V; 50-60 Hz; 3-phases
Power Consumption per reactor12 kW – 22 kW
UV Lamp Lifetime5000 hours
Environmental Operating ConditionsT° = 0°C – 55°C; H% < 95
Global Head Loss< 0.55 bars
Operating Pressure1.5-10 bars
