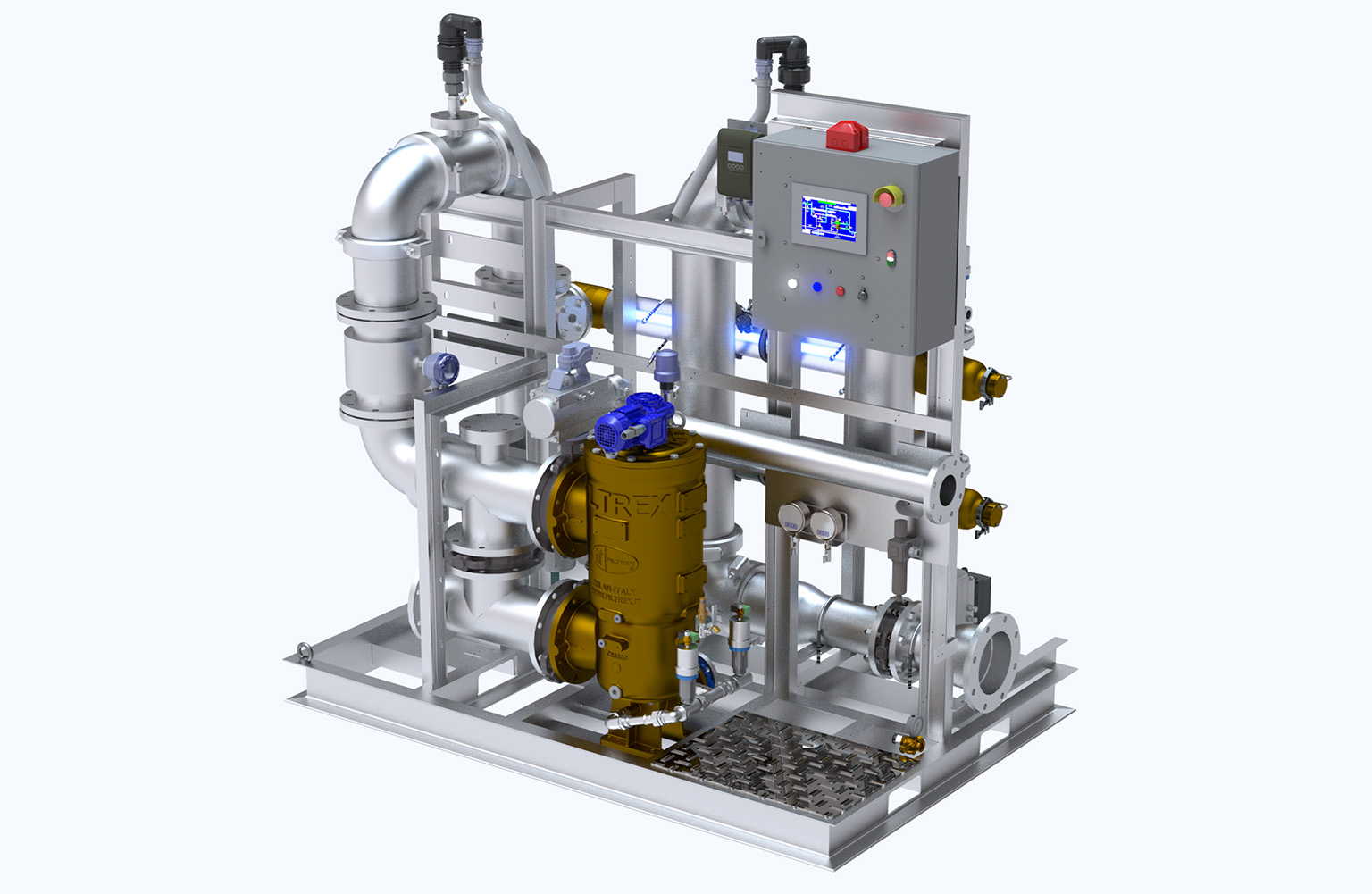

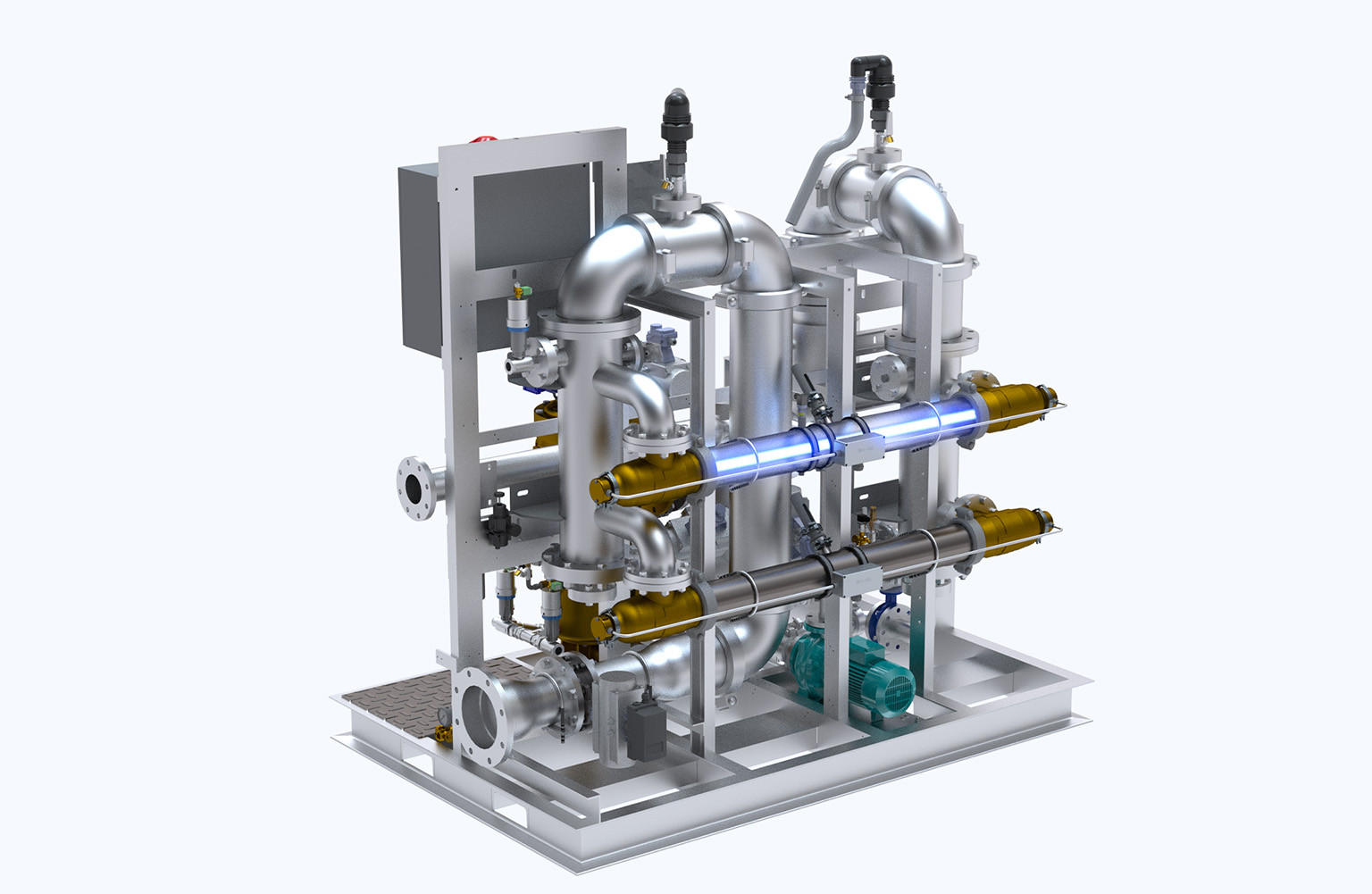

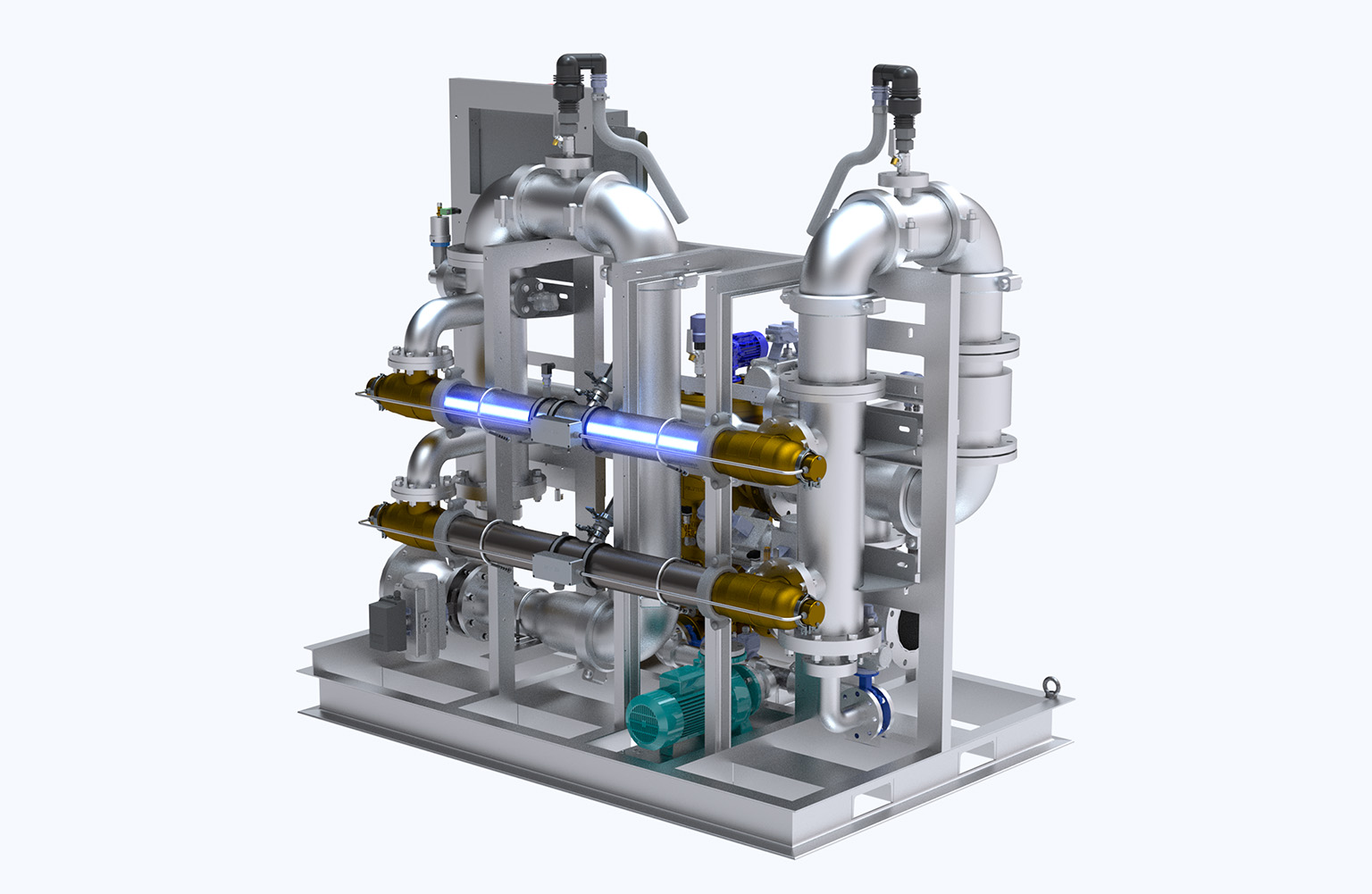

BIO-SEA ‘B’ – SKID solution
The most cost-effective UV ballast water treatment system on the market
Benefits of BIO-SEA ‘B’
- Compatible with ballast water flow rates between 50 and 2000 m³/h
- Titanium reactor designed with a single polychromatic, medium pressure, high-intensity UV lamp for optimum cost-efficiency and performance
- UV dosage automatically controlled according to water quality/turbidity
- Safe: no chemicals, no by-products, no active substances
- System performance unaffected by variations in water temperature or salinity
- Stand-alone operation, user-friendly interface
- Compact unit with minimal mounting height
- Easy to install, use and maintain
- Cost-effective, low OPEX
- Proven performance in low UV water transmission conditions
- High grade quality materials and components
Specifications
| Treatment Capacity | from 50 to 2000m3/h |
| Power Supply | 400-440 V; 50-60 Hz; 3-phases |
| Power Consumption per reactor | 12 kW – 22 kW |
| UV Lamp Lifetime | 5000 hours |
| Environmental Operating Conditions | T° = 0°C – 55°C; H% < 95 |
| Global Head Loss | < 0.55 bars |
| Operating Pressure | 1.5-10 bars |
BIO-SEA ‘B’- Product sheet
