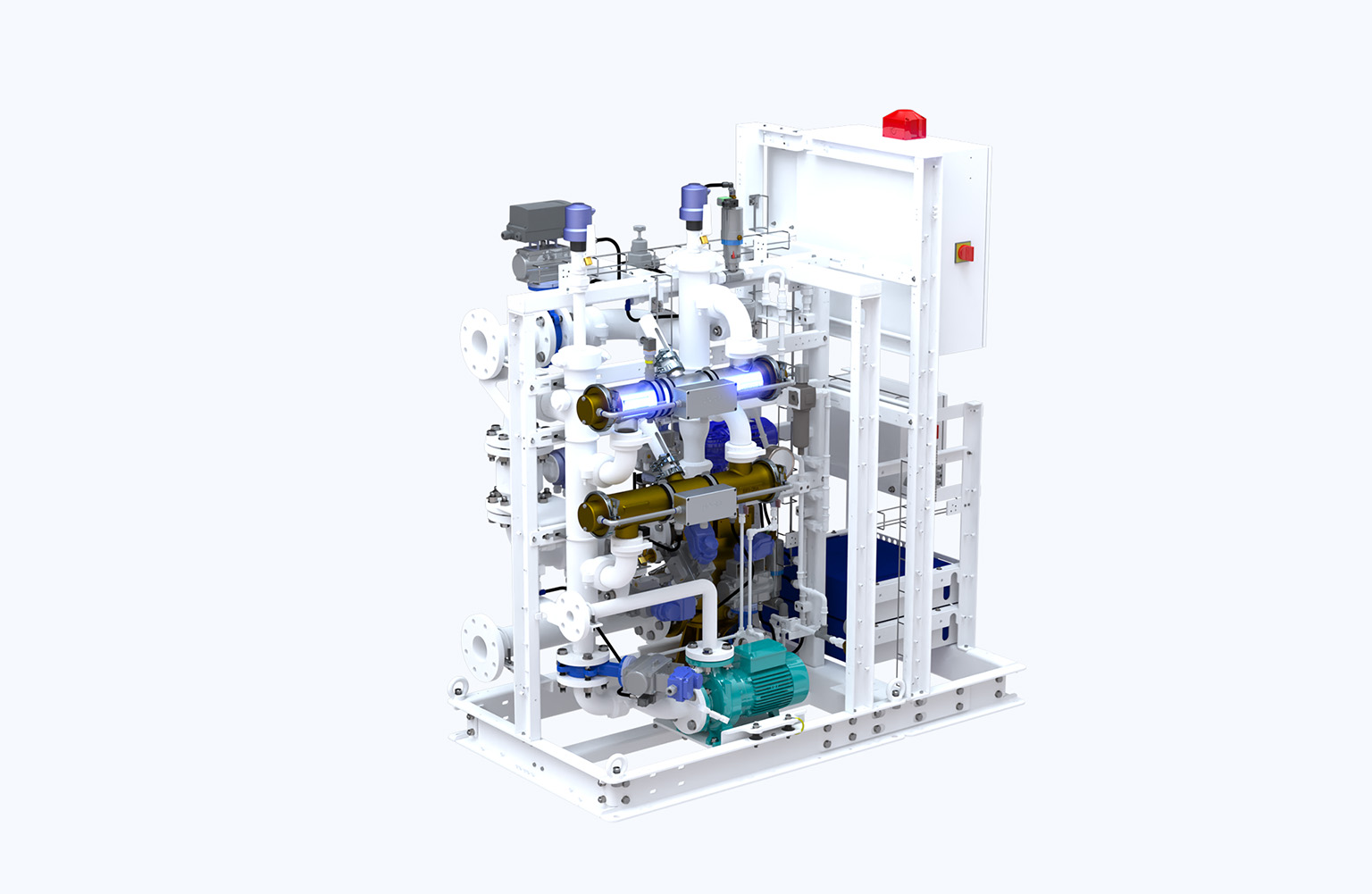

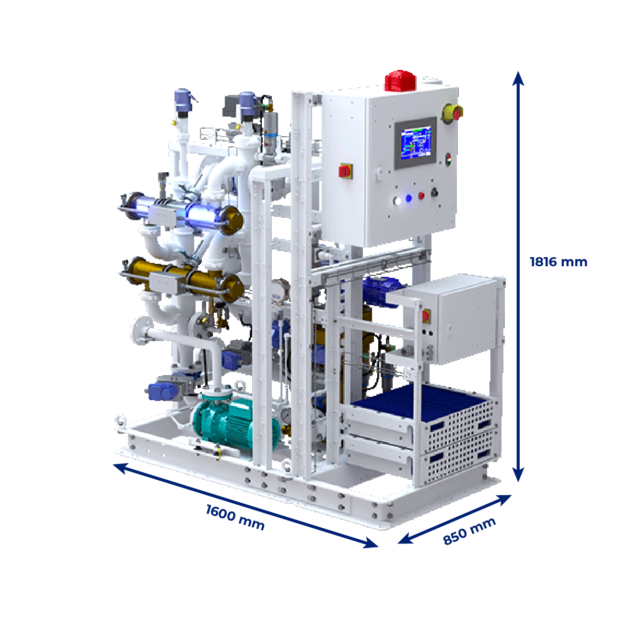

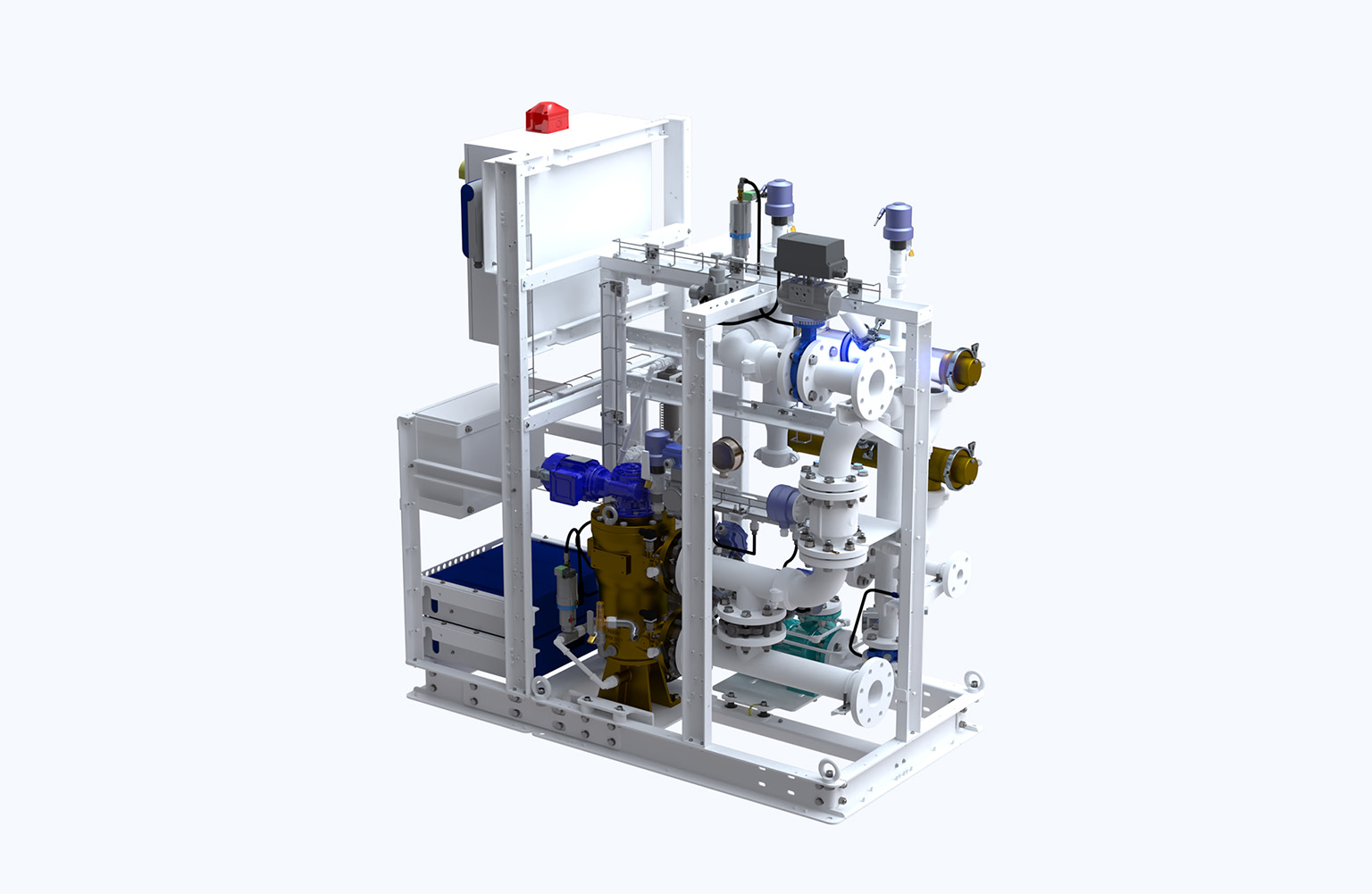

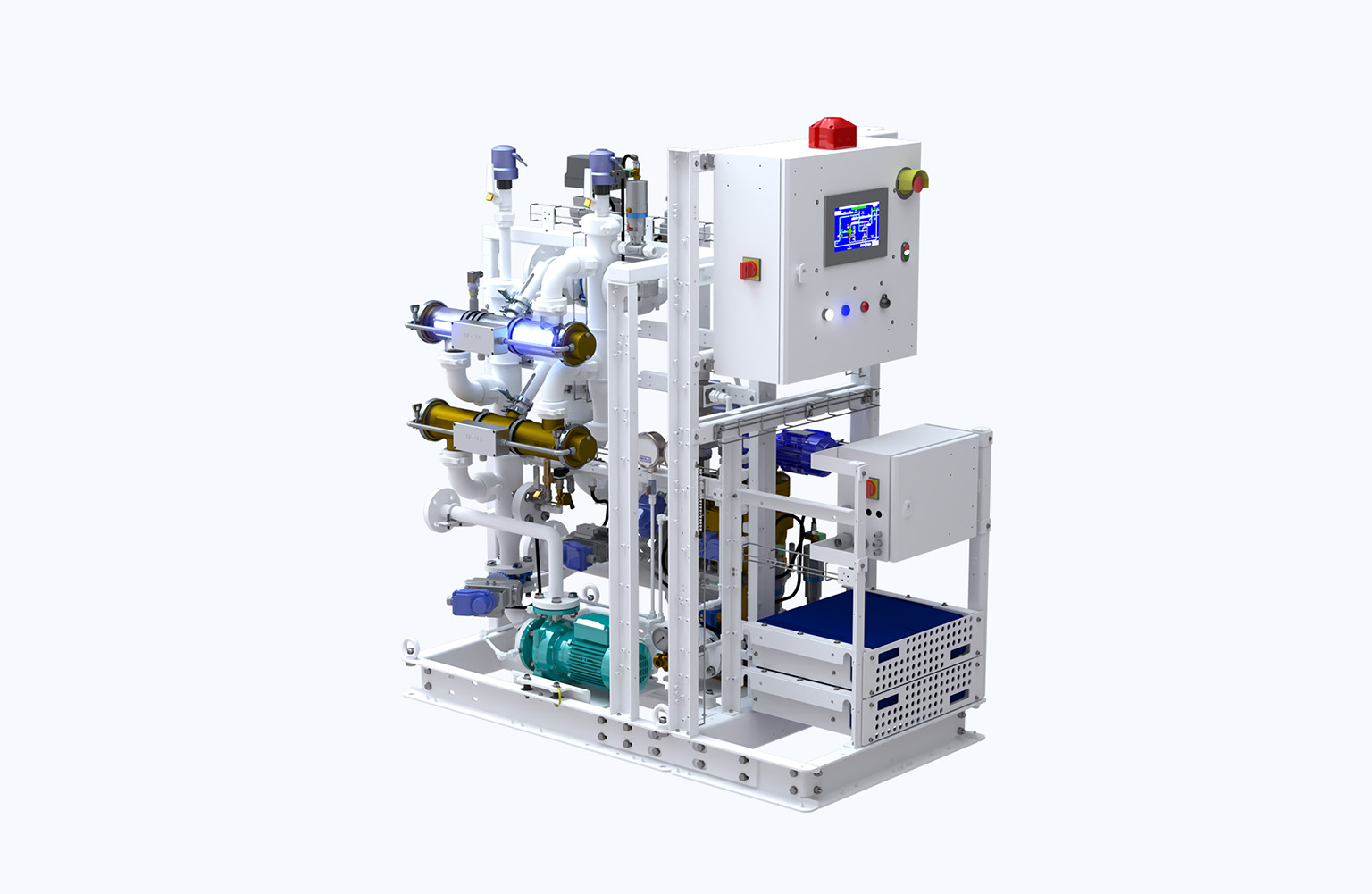

BIO-SEA 'L' - SKID solution for ballast water management

BIO-SEA ‘L’ SKID – The smallest ever UV ballast water treatment system on the market with all-in-one equipment shrank as a compact plug-and-play solution

A compact plug-and-play solution, suitable for the smallest flowrate
No need for additional power cabinet
Reduced number of lamps with the right UV dose & power regulation
Safe: no chemicals, no by-products, no active substances
System performance unaffected by variations in water temperature or salinity
Automatic operation, user-friendly interface
Easy to install, operate and maintain
Cost effective, low OPEX solution
High grade marine quality materials and components

Treatment Capacity	from 13 to 120m³/h
Power Supply	400-440 V; 50-60 Hz; 3-phases
Power Consumption per UV reactor	6 kW
UV lamp lifetime	5000 hours
Environmental Operating Conditions	IP54; T° = 0°C; H% < 95
Global Head Loss	< 0.55 bars
Operating Pressure	1.5-10 bars
